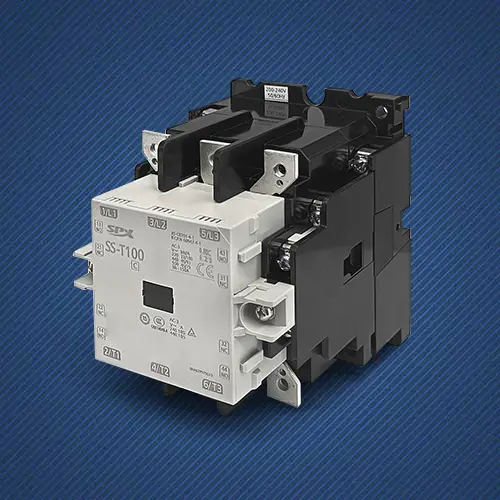

100A AC Contactor

The SPX Electric Factory high quality 100A AC Contactor is made of high-quality silver based alloy contact material and an engineering plastic shell with strong impact resistance. Its mechanical lifespan can reach millions of times, designed specifically for industrial applications that require frequent start stop operations, minimizing downtime for maintenance and reducing total cost of ownership.

Feature

The rated working current is up to 100A, which can easily drive high-power three-phase loads. The standard coil voltage supports various specifications such as 24V AC. The maximum switch voltage can reach 600V AC, which can come the requirements of various industrial voltage levels.
The durable 100A AC Contactor adopts a modular design and supports panel or DIN rail installation, saving cabinet space and facilitating installation and maintenance during work.
Some models have safety contactor function and overvoltage protection design, providing additional safety assurance for critical applications.

Basic Information

Rated current: 100 A
Number of poles: 3 poles (main contact)
Main contact configuration: 3 normally open (3 NO)
Auxiliary contacts: Standard configuration includes 1 normally open (NO) and 1 normally closed (NC)

Coil parameters

Coil voltage: 24 V AC (example model, other voltages can be customized)
Pull in voltage: ≤ 80% of rated voltage (typical value)
Release voltage: ≥ 20% rated voltage (typical value)

Electrical and mechanical characteristics
Rated insulation voltage: 690 V AC
Maximum switch voltage: 600 V AC
Rated power: capable of controlling a three-phase motor of approximately 55kW at 380V AC voltage
Mechanical lifespan: up to 1000000 operations
Electrical lifespan: Under rated load, the typical value exceeds 100000 operations

Protection level: IP20, preventing fingers from touching dangerous parts
Working temperature range: -5 ° C to+60 ° C
Storage temperature range: -40 ° C to+70 ° C

Application

The 100A AC Contactor in stock controls three-phase asynchronous motors for fans, pumps, compressors, conveyors, and other heavy machinery.
Used for power control of central air conditioning units, cooling tower fans, and large water pumps.
As a key component of capacitor switching and automatic power transfer system (ATS).
Control large lighting groups, electric doors, stage equipment, and other high current loads.
