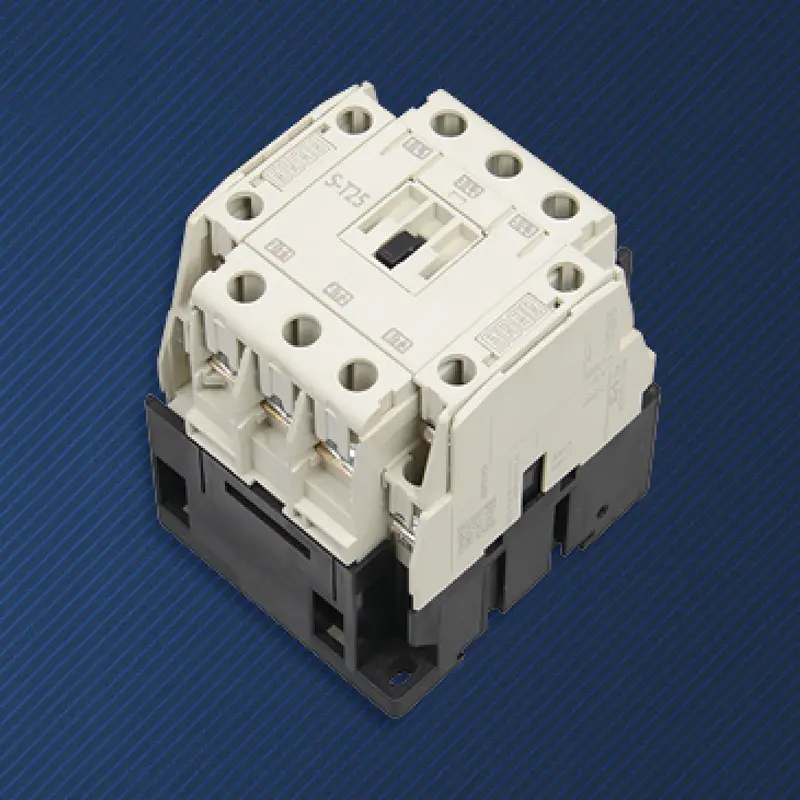

25A Contactor for AC Unit

SPX Electric's high-quality 25A Contactor for AC Unit is primarily designed for use in 50Hz or 60Hz AC/DC circuits, for long-distance connection or disconnection of circuits. If you are unsure about the AC contactors that should be used in different scenarios, you can contact us for answers! We have over ten years of experience and are more than happy to answer your questions!

Application：

The 25A Contactor for AC Unit has been applied in various electrical control systems and has become an indispensable and important component in modern electrical engineering. It can not only effectively control the start stop of the motor, but also achieve precise control of other electrical equipment.
In production lines and automation equipment, the 25A Contactor for AC Unit is used to control the start stop and reverse of motors to ensure smooth production processes.
Used to control the operation of equipment such as fans, water pumps, compressors, etc., it can achieve remote control and timed control, improving the convenience of operation.
In the electrical system of large buildings, AC contactors are used to control other electrical equipment in the lighting system. This use can improve the efficiency of the lighting system, reduce labor costs, and increase efficiency for oneself.
In various mechanical equipment, AC contactors are used to control drive motors, and the correct use of the 25A Contactor for AC Unit can improve the service life of the drive motor, killing two birds with one stone.
In substations and distribution systems, the 25A Contactor for AC Unit is used for circuit switching, protection, and monitoring to ensure the stability and safety of the power system.
In transportation such as electric trains, subways, and electric vehicles, the 25A Contactor for AC Unit is used to control the operation of the power system.
In some large household appliances, such as air conditioners and water heaters, AC contactors are used to control the start and stop of the equipment.

SPX AC Magnetic Contactor Parameter

Frame(A)			SS-T25
KW/HP(AC-3) Reted power(AC-3) IEC60947-4		220V	7.5/10
		380V	15/20
Reted current(AC-3) GB14048.4		220V	30
		380V	34
Reted heating current(A)			50
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Contact	Standard	2NO+2NC
	Reted current (A)	220V	1.6
		380V	0.95
Electric life			80
Machanical life			500

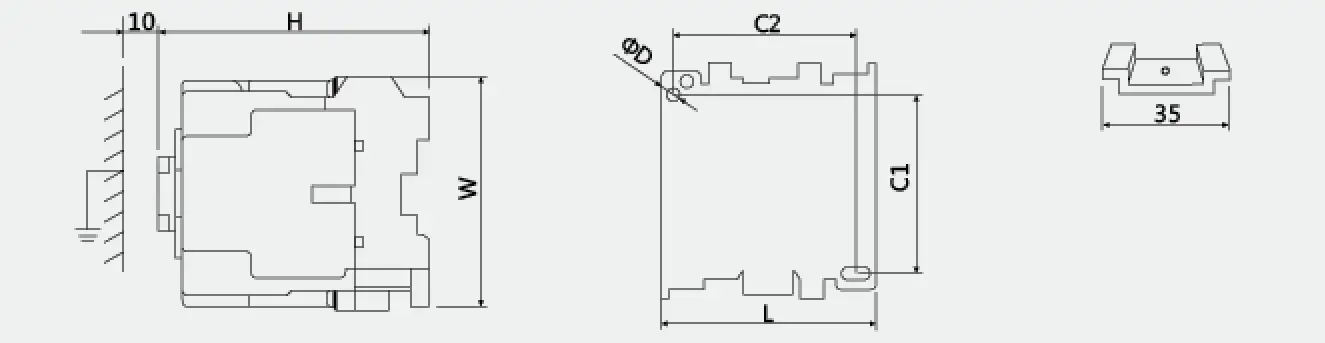

Outline and installation dimension
			Type	L	W	H	C1	C2	ΦD
			SS-T25	63	81	81	58	54	4.5
