Modular AC Contactor AICT

Model:ss-n10

SPX Electric factory's high quality Modular AC Contactor AICT is not only an electrical component, but also a customizable power control platform. It breaks through the limitations of traditional contactor fixed configuration, and through innovative modular architecture, allows users to flexibly combine contacts, auxiliary modules, and functional accessories according to specific application needs, achieving smooth expansion from simple start stop to complex interlocking control, bringing unprecedented flexibility, scalability, and economy to system design.

Send Inquiry

Product Description

SPX Electric's high-quality Modular AC Contactor AICT uses basic core contactor units that can work independently. Users can install various standardized auxiliary contact modules, delay modules, mechanical interlocking modules, or status indication modules on the side or top as needed, just like building blocks. Please contact sales8@cnspx.com We are delighted to have the opportunity to establish a lasting partnership with you!

advantage

You don't need to pre pay for uncertain future feature requirements or occupy installation space. When the control logic changes, only modules need to be added or replaced, rather than the entire Modular AC Contactor AICT, significantly reducing upgrade costs and downtime.
Engineers only need the core units of the main inventory standards and a few common modules to cover the vast majority of application scenarios, greatly simplifying the selection process and reducing the types and costs of spare parts inventory.
Modular design makes fault diagnosis and component replacement exceptionally simple. Without the need to disassemble the entire machine or complex wiring, specific functional modules can be quickly replaced, greatly reducing system recovery time.
Modular AC Contactor AICT in stock can easily build reversible starters by adding mechanical interlocking modules; Adding a delay module can achieve basic timing control such as star delta startup, reducing reliance on external relays

SPX AC Contactor Switch Parameter

Frame(A)			S-C10			S-C12		S-C20		S-C21
			(S-N10)	(S-N11)		（S-N12)		(S-N12)		(S-N20)		(S-N21)
KW/HP（AC-3) Reted power(AC-3) EC60947-4		220V	2.5/3.5	3.5/4.5		3.5/4.5		4/5.5		5.5/7.5		5.5/7.5
		380V	4/5.5	5.57.5		5.5/7.5		7.5/10		11/15		11/15
Reted current(AC-3) GB14048.4		220V	11	13		13		16		22		22
		380V	9	12		12		16		22		22
Reted heating curent(A)			20					25		32
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Contact	Standard	1NO			1NO+1NC		-		1NO+1NC		2NO+2NC
	Reted current (A)	220V	1.6
		380V	0.95
Electric life			100
Machanical life			1000							500
Outline and installation dimension



			Type		L		W	H	C1		C2		D
			S-N10		43		78	78	50		35		4.5
			S-N12		53		78	78	50		40		4.5
			S-N18		43		79	81	60		30		4.5
			S-N21		63		81	81	60		54		4.5

Frame(A)			S-C25(S-N25)	S-C85(S-N35)		S-C50(S-N50)	S-C65(S-N65)		S-C80(S-N80)		S-C95(S-N95)
KWIHP(AC-3) Reted power(AC-3) EC60947-4		220V	7.5/10	11/15		15/20	18.5/25		22/30		30/40
		380V	15/20	18.5/25		22/30	30/40		45/60		55/75
Reted current(AC-3) GB14048.4		220V	30	42		54	68		85		104
		380V	34	44		51	66		85		105
Reted heating current(A)			50	60		80	100		120		135
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Contact	Standard	2NO+2NC
	Reted current(A)	220V	1.6
		380V	0.95
Electric life			80			60
Machanical life			500			300
Outline and installation dimension
			Type		L	W	H	C1		C2		φD
			S-N25/35		75	89	91	58		54		4.5
			S-N50/65		88	106	106	75		70		5
			S-N80/95		100	124	130	110		80		6

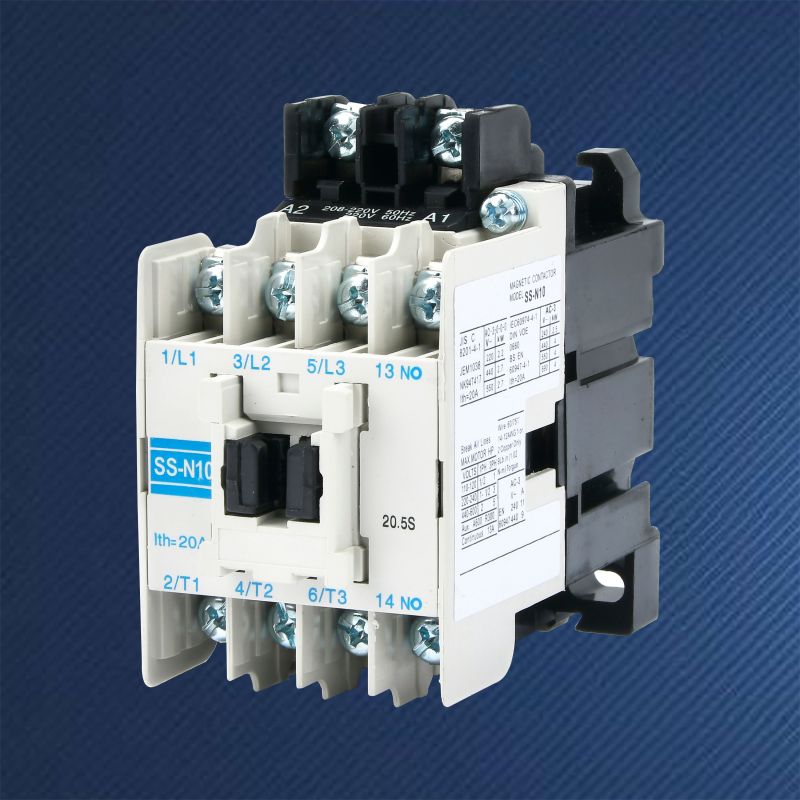

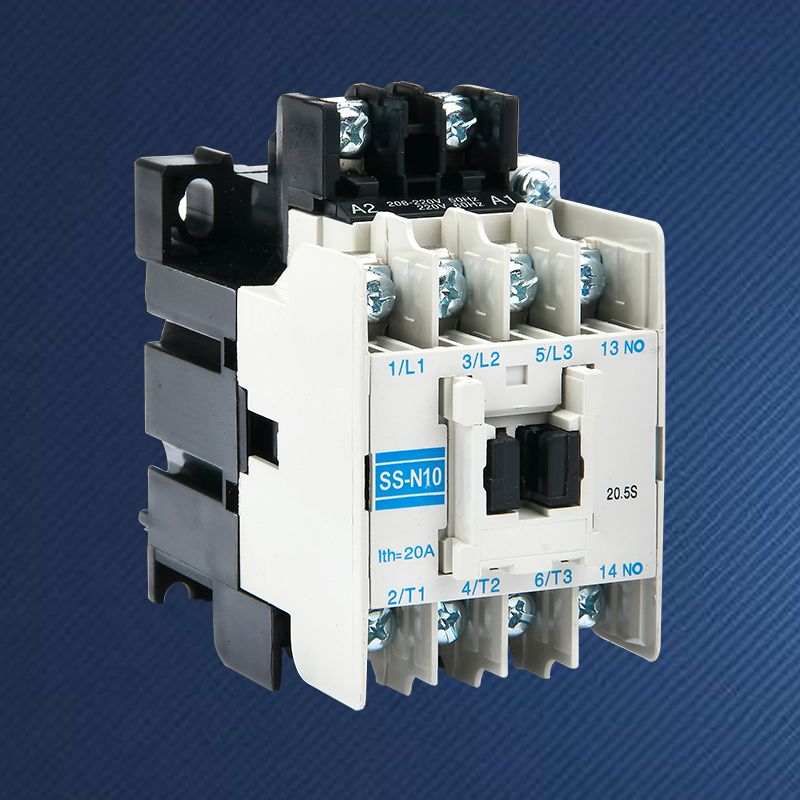

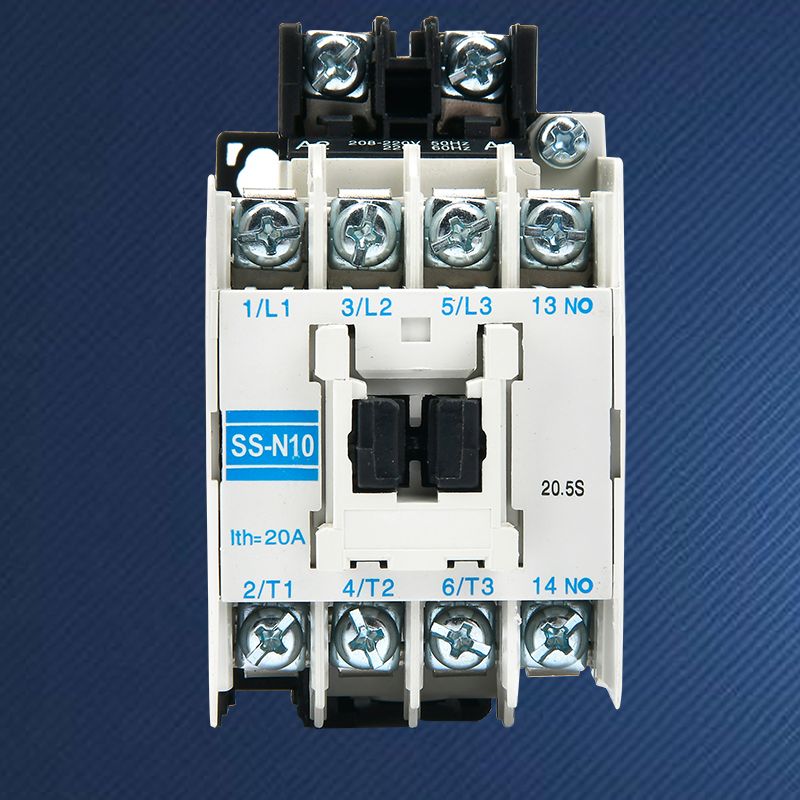

SPX AC Contactor Switch S-N10 Details

*match with thermal relay

*Products of the same series
