50 AC Air Compressor Contactor

Model:ss-t50

SPX Electric, as a recognized excellent manufacturer in the electrical field such as 50 AC Air Compressor Contactor and thermal relays, has many years of rich experience and has already occupied many markets in the world. Our high quality AC Air Compressor Contactor is the most basic and common electrical component in relay control systems. It is mainly used for connecting and disconnecting lines, or frequently controlling the operation of motors and other equipment. It is an intermediate control component. The advantage is that it can be frequently connected and disconnected. Lines typically use small currents or voltages to control large currents or voltages.

Send Inquiry

Product Description

It is not an exaggeration to say that the SPX Electric factory's high-quality 50 AC Air Compressor Contactor is the most commonly used component in electrical control. For every friend who wishes to learn electrical knowledge and skills, mastering the relevant knowledge of contactors is particularly important. Especially for power and electrical control, it is necessary to deal with contactors almost every day! With our extensive market presence in the Middle East and Southeast Asia, especially growing popularity in Thailand, our product range is tailored to meet different needs and preferences. We are passionate about establishing a lasting partnership with you and positioning ourselves as your reliable long-term partner.

We must figure out and thoroughly understand such an important component!
Customized 50 AC Air Compressor Contactor is an electrical component that uses an electromagnetic coil to generate a magnetic field through current to attract moving contacts, causing them to close and connect to the power supply to control the power equipment.

Why not use a switch directly to control the motor?

Because the starting current of the motor is very high, several times the rated current, high quality 50 AC Air Compressor Contactor is highly likely to require contact points. In many control situations, frequent starting and stopping are required, and manually opening and closing the switch can also easily cause the switch to break. In addition, in many control sites, it is necessary to control the distance quite far. If it is remote, running to manually control the start and stop of the motor is a bit time-consuming. Contactors are definitely suitable for the above control requirements!

SPX AC Electrical Contactor Parameter

Framel(A)			S-M10(S-T10)	S-M12(S-T12)	S-M20(S-T20)		S-M21(S-T21)		S-M25(S-T25)
KWHP(AC-3) Reted power(AC-3) EC60947-4		220V	2.5/3.5	3.5/4.5	3.7		4		7.5110
		380V	4/5.5	5.5/7.5	7.5		7.5		15/20
Reted cument(AC-3) GB14048.4		220V	11	13	18		20		30
		380V	9	12	18		20		34
Reted heating cument(A)			20		32				50
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Cantac	Standard	1NO	1NO+1NC	1NO+1NC		2NO+2NC
	Reted cument(A)	220V	1.6
		380V	0.95
Electric life			100						80
Machanical life			1000		500				500
Outline and installation dimension

			Type	L	W	H		C1	C2	φD
			S-T10	36	75	78		60	28	4.2
			S-T12	44	75	78		60	30/35	4.2
			S-T20
			S-T21	63	81	81		58	54	4.5
			S-T25

Frame(A)			S-M35(S-T35)		S-M50(S-T50)		S-M65(S-T65）		S-M80(S-T80)
K/HP(AC-3) Reted power(AC-3) EC60947-4		220V	11/15		15/18.5		18.5/22		22/30
		380V	18.5/22		22/30		30/45		45/55
Reted current(AC-3) GB14048.4		220V	42		54		68		85
		380V	40		50		65		85
Reted heating current(A)			60		80		100		120
Reted insutaled voltage(V)			690
Aicany contact AC-15	Contad	Standard	2NO+2NC
	Reted current (A)	220V	1.6
		380V	0.95
Electric life			85		65
Machanical life			500		300
Outline and installation dimension

			Type	L	W	H	C1	C2	φD
			S-M35	75	89	90	70	65	4.5
			S-M50
			S-M65	88	103	105	75	70	5.5
			S-M80

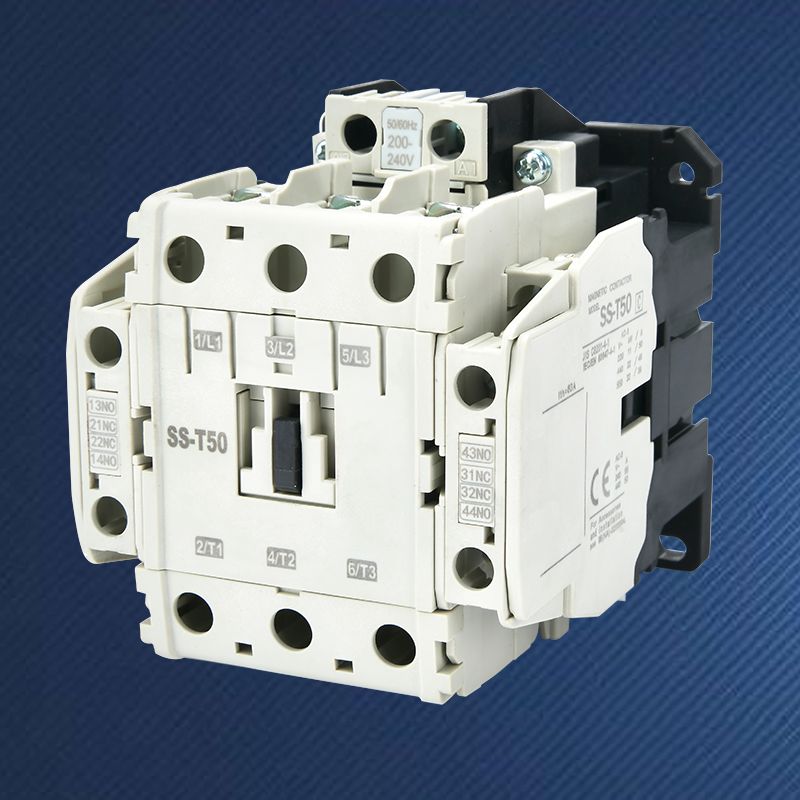

SPX AC Electrical Contactor S-T50 Details

*with CE certificate

*Rear view

*Products of the same series
