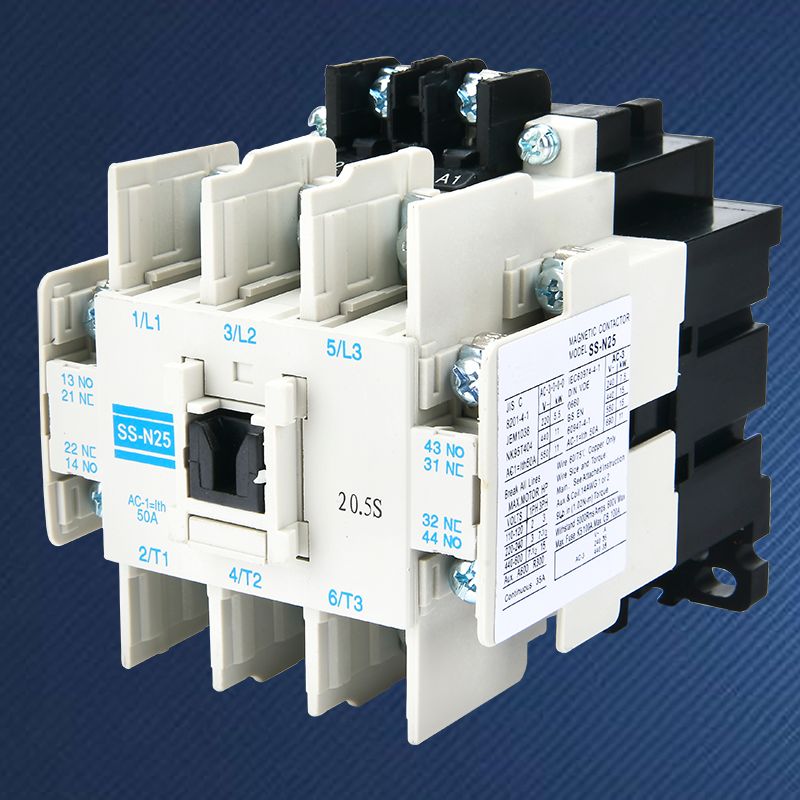

AC Contactor for Air Conditioner

Behind every temperature regulation command, the SPX Electric high quality AC Contactor for Air Conditioner bears the crucial mission of connecting to a powerful power source. The air conditioning special contactor is not a simple application of universal components, but a professional component deeply optimized for the load characteristics of compressors and fan motors, ensuring that the air conditioning system can cope with tens of thousands of start-up shocks and uninterrupted stable operation during its lifespan of several years or even more than ten years.

At the moment of compressor start-up, the current can reach 5-7 times the rated value. The AC Contactor for Air Conditioner uses specially designed silver alloy contacts and a reinforced electromagnetic system, which can withstand frequent current surges with anti welding and low resistance, avoiding faults caused by adhesion or abnormal heating.
Optimize the strict working system (AC-3 or AC-3a category) for high-frequency start stop of air conditioning (such as places with high temperature control accuracy requirements), and within the contracted service life, the electrical life far exceeds that of general applications, reducing system downtime caused by contactor failure.
The optimized design of the coil maintains extremely low power consumption after suction, which not only saves energy, but also significantly reduces the temperature rise of the coil, improves long-term working stability, and meets the overall energy-saving requirements of high-efficiency air conditioning systems.
The AC Contactor for Air Conditioner is equipped with high-quality short-circuit rings and buffering structures, effectively suppressing the inherent "buzzing" sound of the AC electromagnetic system, avoiding noise transmission through walls or pipes, and affecting indoor environmental quietness.
Optimize the appearance of the air conditioning control box to facilitate high-density layout on limited PCB boards or mounting bases, taking into account its compact space.
The AC Contactor for Air Conditioner is equipped with a high-performance arc extinguishing hood, which effectively extinguishes the arc generated during current interruption; The insulated shell has good flame retardant and anti creepage properties, and is suitable for the condensation and water vapor environment that may exist inside the air conditioner.
Usually fixed with screws or installed on rails, with spacious wiring terminals; Some models provide mechanical action indicator windows for installation or maintenance personnel to quickly confirm their working status.

Strictly calibrate according to the rated current and starting characteristics of the compressor (single-phase/three-phase) and fan motor, provide accurate current specifications (such as 20A, 30A, 40A, etc.), and avoid early failure caused by "power virtual calibration" or improper selection.

The coil and metal components have undergone special rust and corrosion prevention treatment, which can withstand harsh environments such as high temperature, high humidity, salt spray (in coastal areas), and drastic temperature changes that outdoor units may face, ensuring smooth operation of internal mechanisms.

Control the power supply of the compressor and outdoor fan of the variable frequency or constant speed air conditioner.
AC Contactor for Air Conditioner serves as the driving unit for each outdoor unit compression module.
Control the main loads such as the compressor and four-way reversing valve in the refrigeration circuit.

1. Determine the load type and current: Check the rated current (RLA) or maximum operating current (MCA) on the compressor nameplate, and use this as the main basis to select the rated current of the contactor, leaving a safety margin of about 1.2-1.5 times.

2. Confirm the number of poles and voltage: 2-pole contactors are used for single-phase compressors, and 3-pole contactors are used for three-phase compressors; The voltage level of the main contact should be ≥ the air conditioning power supply voltage (such as 220V AC or 380V AC).
3. Matching control coil voltage: Select based on the control signal voltage provided by the air conditioning control motherboard (commonly 24V AC or 220V AC).

A poor quality or improperly selected contactor may cause unstable power supply to the compressor, contact adhesion (the compressor does not stop), or burnout (unable to start), resulting in high maintenance costs and system shutdown. Choosing SPX Electric AC Contactor for Air Conditioner to eliminate such risks from the source is a fundamental hardware investment to ensure the long-term trouble free operation of air conditioning systems and achieve their design lifespan.

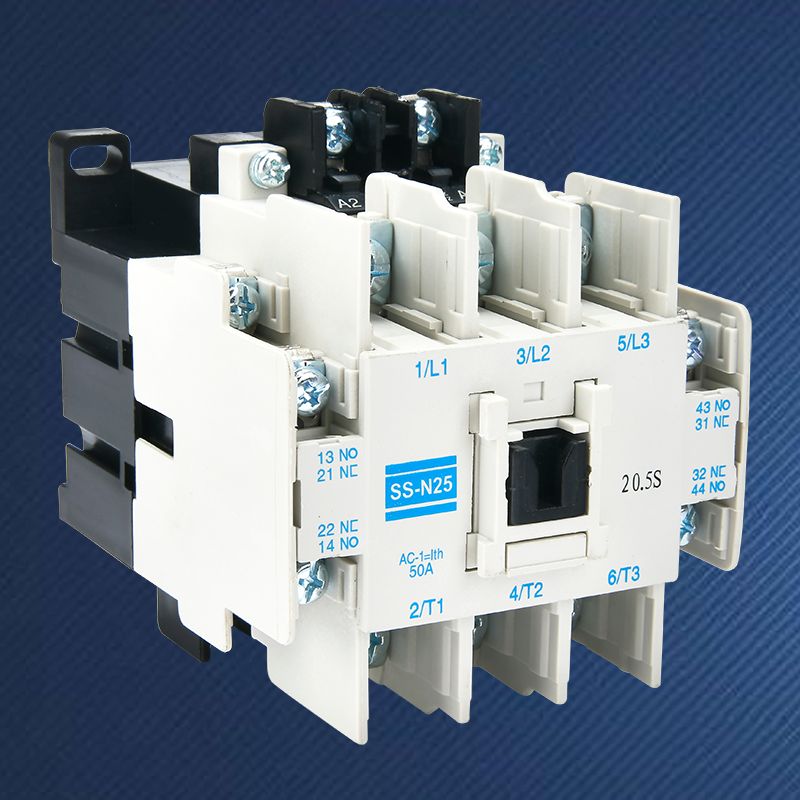

*Different perspectives
