12A AC Operated Contactor

Model:ss-t12

As a well-known manufacturer and supplier of Operated Contactors in China, SPX Electric produces a 12A AC Operated Contactor that efficiently establishes and disconnects connections, effectively controlling the operation of motors and various equipment. We eagerly look forward to establishing a long-term partnership with you in China!

Send Inquiry

Product Description

SPX Electric factory has a strong product portfolio that includes high-quality 12A AC Operated Contactors, thermal relays, and magnetic starters, and has accumulated years of professional experience. Our commitment to quality is reflected in the significant price advantage we offer, which gives our products sufficient competitiveness in the market.

I believe everyone knows that AC contactors are a fundamental and widely used electrical component in relay control systems. Its main function is as an intermediate control component, and the significant advantage of SPX Electric's 12A AC Operated Contactor is its ability to frequently connect and disconnect circuits. Usually, it uses smaller currents or voltages to manage larger currents or voltages in the system.

Characteristics and Applications of SPX AC Contactor

Please use our 12A AC Operated Contactor in conjunction with a thermal relay to ensure equipment safety.
Using sustainable raw materials.
Provide 12A AC Operated Contactor with mid to high end quality to meet different customer needs and adapt to different markets.
Silver contact point.
The SPX customized 12A AC Operated Contactor uses low current or low voltage to control high current or high voltage in the system. In addition to motors, it can also be used to control other electrical loads, such as electric heaters, welding machines, lighting equipment, etc.

Why choose us?

SPX Electric's business has expanded to the Middle East and Southeast Asia, with a significant presence in Thailand. Of course, we are also expanding into the European and American markets, as we have achieved some success in Thailand and accumulated decades of experience.

The 12A AC Operated Contactor is an affordable motor control device product. They can be installed using DIN rails or with reserved mounting holes, and can be directly screwed onto surfaces or mounting plates. Combined with corresponding accessories, they can be used for various motor control device configurations, including direct start, star delta starter, and reversing contactor.

We look forward to establishing a long-term partnership with you, and SPX Electric is committed to becoming your trusted long-term partner in China. Our persistent pursuit of quality and innovation, I believe we can coincide!

SPX AC operated Contactor Parameter

Framel(A)			S-M10(S-T10)	S-M12(S-T12)	S-M20(S-T20)		S-M21(S-T21)		S-M25(S-T25)
KWHP(AC-3) Reted power(AC-3) EC60947-4		220V	2.5/3.5	3.5/4.5	3.7		4		7.5110
		380V	4/5.5	5.5/7.5	7.5		7.5		15/20
Reted cument(AC-3) GB14048.4		220V	11	13	18		20		30
		380V	9	12	18		20		34
Reted heating cument(A)			20		32				50
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Cantac	Standard	1NO	1NO+1NC	1NO+1NC		2NO+2NC
	Reted cument(A)	220V	1.6
		380V	0.95
Electric life			100						80
Machanical life			1000		500				500
Outline and installation dimension

			Type	L	W	H		C1	C2	φD
			S-T10	36	75	78		60	28	4.2
			S-T12	44	75	78		60	30/35	4.2
			S-T20
			S-T21	63	81	81		58	54	4.5
			S-T25

Frame(A)			S-M35(S-T35)		S-M50(S-T50)		S-M65(S-T65）		S-M80(S-T80)
K/HP(AC-3) Reted power(AC-3) EC60947-4		220V	11/15		15/18.5		18.5/22		22/30
		380V	18.5/22		22/30		30/45		45/55
Reted current(AC-3) GB14048.4		220V	42		54		68		85
		380V	40		50		65		85
Reted heating current(A)			60		80		100		120
Reted insutaled voltage(V)			690
Aicany contact AC-15	Contad	Standard	2NO+2NC
	Reted current (A)	220V	1.6
		380V	0.95
Electric life			85		65
Machanical life			500		300
Outline and installation dimension

			Type	L	W	H	C1	C2	φD
			S-M35	75	89	90	70	65	4.5
			S-M50
			S-M65	88	103	105	75	70	5.5
			S-M80

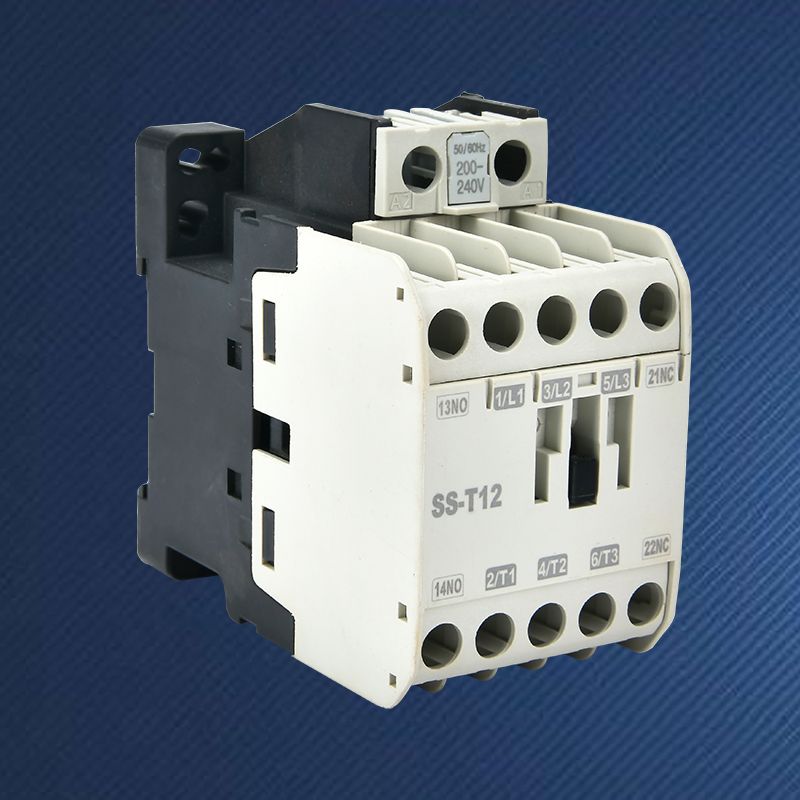

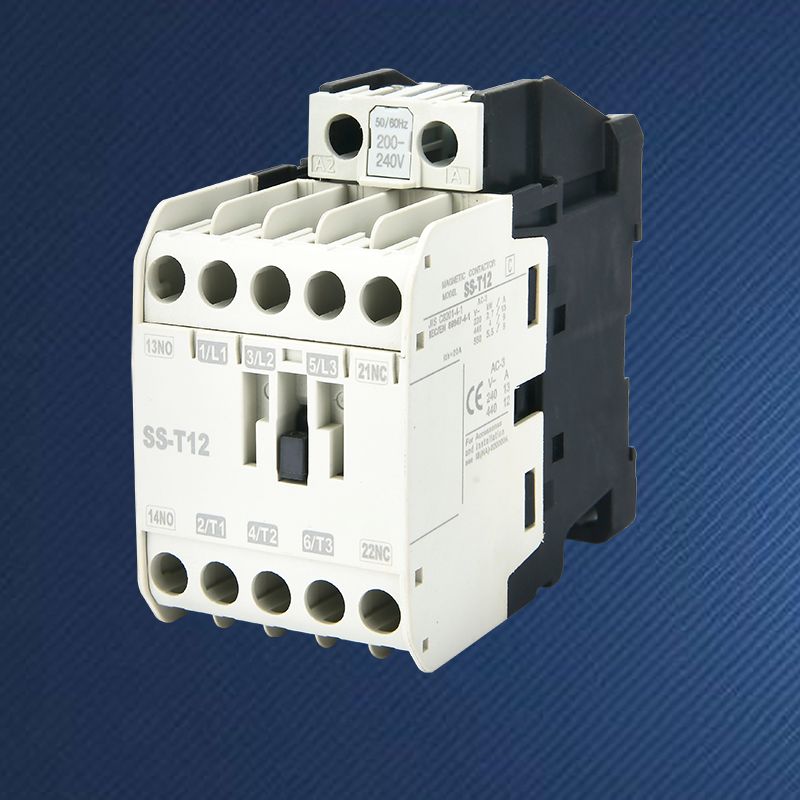

SPX AC operated Contactor S-T12 Details

*with CE certificate

*Good material PA66

*Products of the same series
