35A Contactor for AC Unit

Model:ss-t35

SPX Electric factory is an outstanding manufacturer of industrial power AC contactors, 35A Contactor for AC Units, and magnetic starters. We have our own factory, so reducing costs and increasing efficiency is what we should do. And with years of accumulated rich professional knowledge, SPX has become the industry benchmark for electrical components in China. If you are interested in our product, you can contact us through sales8@cnspx.com contact us!

Send Inquiry

Product Description

SPX Electric's specialization in high quality 35A Contactor for AC Units and relays highlights our significant price advantage, making our products competitive. With our extensive market presence in the Middle East and Southeast Asia, especially the increasing appeal in Thailand, we are preparing to explore the European and American markets. Secondly, our products are customized because I believe that the requirements, standards, and regulations for this electrical product vary from country to country. Therefore, we provide customized services to meet everyone's different needs and preferences. We are eager to have the opportunity to establish a cooperative relationship with you and position ourselves as a long-term partner for your sustainable development.

The SPX Durable Industrial 35A Contactor for AC Unit is a widely used basic electrical component in relay control systems.. As an intermediate control component, its significant advantage lies in the ability to frequently establish and disconnect connections. Its main functions include connecting and disconnecting lines, as well as frequently controlling the operation of motors and other equipment. Typically, it uses small currents or low voltages to control large currents or high voltages in the system.

Characteristics and Applications

Customized 35A Contactor for AC Unit is used in conjunction with thermal relay appliances to protect equipment.
All 35A Contactors for AC Units in our factory use environmentally friendly raw materials
Our communication electrical is suitable for different regulations and meets the needs of different customers with mid to high end quality.
Silver contact
The main application object of 35A Contactor for AC Unit is motors, but it is also widely used to control other electrical loads, such as DC welding machines, power capacitors, electric water heaters, lighting fixtures, etc.

SPX industrial power AC Contactor Parameter

Framel(A)			S-M10(S-T10)	S-M12(S-T12)	S-M20(S-T20)		S-M21(S-T21)		S-M25(S-T25)
KWHP(AC-3) Reted power(AC-3) EC60947-4		220V	2.5/3.5	3.5/4.5	3.7		4		7.5110
		380V	4/5.5	5.5/7.5	7.5		7.5		15/20
Reted cument(AC-3) GB14048.4		220V	11	13	18		20		30
		380V	9	12	18		20		34
Reted heating cument(A)			20		32				50
Reted insutaled voltage(V)			660
Auxicary contact AC-15	Cantac	Standard	1NO	1NO+1NC	1NO+1NC		2NO+2NC
	Reted cument(A)	220V	1.6
		380V	0.95
Electric life			100						80
Machanical life			1000		500				500
Outline and installation dimension

			Type	L	W	H		C1	C2	φD
			S-T10	36	75	78		60	28	4.2
			S-T12	44	75	78		60	30/35	4.2
			S-T20
			S-T21	63	81	81		58	54	4.5
			S-T25

Frame(A)			S-M35(S-T35)		S-M50(S-T50)		S-M65(S-T65）		S-M80(S-T80)
K/HP(AC-3) Reted power(AC-3) EC60947-4		220V	11/15		15/18.5		18.5/22		22/30
		380V	18.5/22		22/30		30/45		45/55
Reted current(AC-3) GB14048.4		220V	42		54		68		85
		380V	40		50		65		85
Reted heating current(A)			60		80		100		120
Reted insutaled voltage(V)			690
Aicany contact AC-15	Contad	Standard	2NO+2NC
	Reted current (A)	220V	1.6
		380V	0.95
Electric life			85		65
Machanical life			500		300
Outline and installation dimension

			Type	L	W	H	C1	C2	φD
			S-M35	75	89	90	70	65	4.5
			S-M50
			S-M65	88	103	105	75	70	5.5
			S-M80

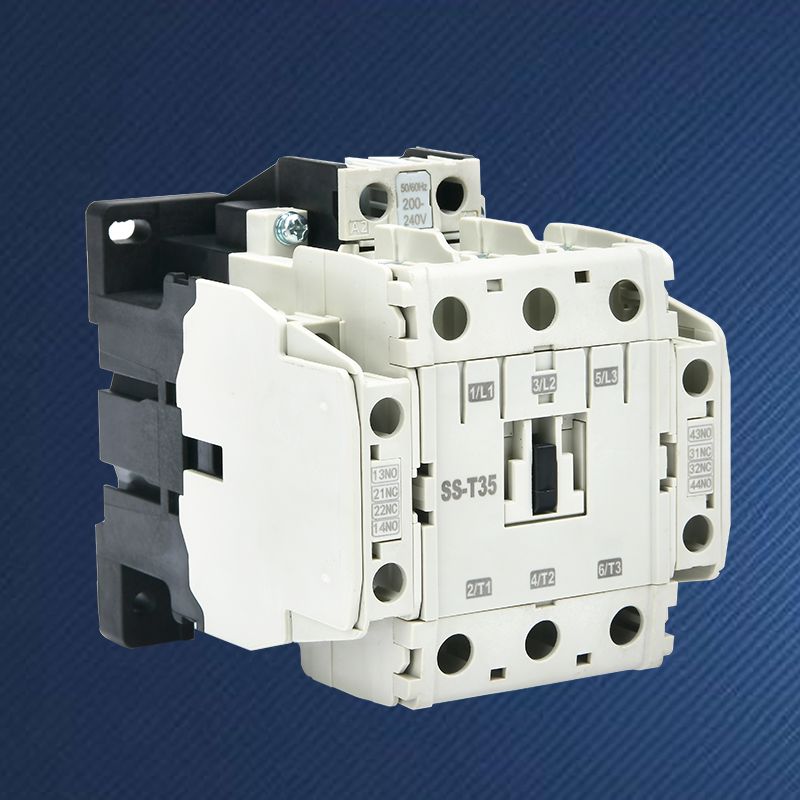

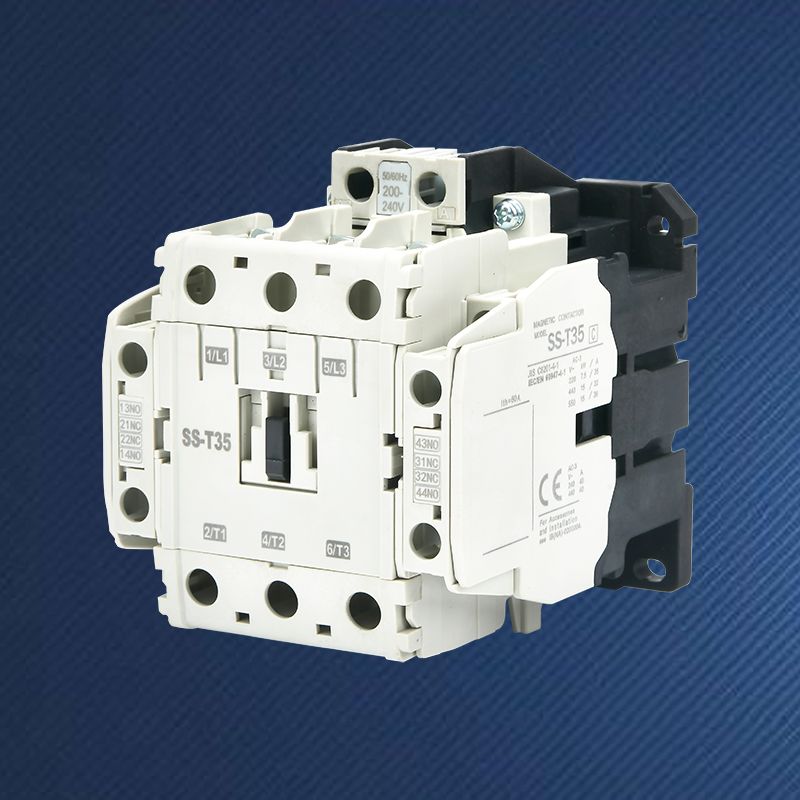

SPX industrial power AC Contactor S-T35 Details

*with CE certificate

*Rear view

*match with thermal relay

*Products of the same series
