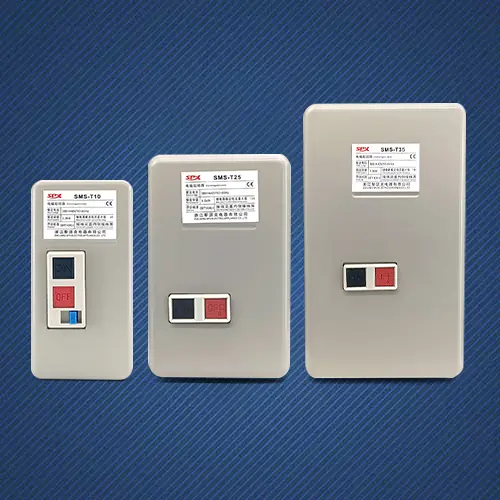

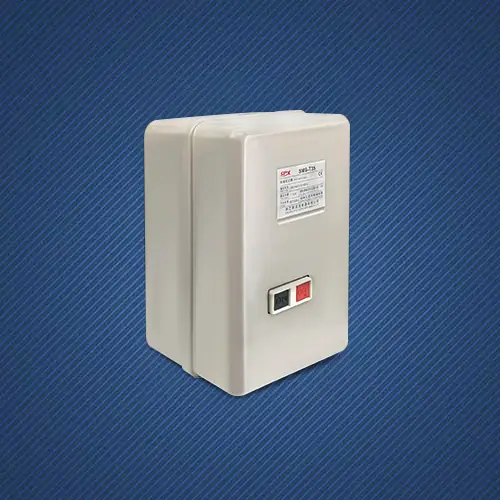

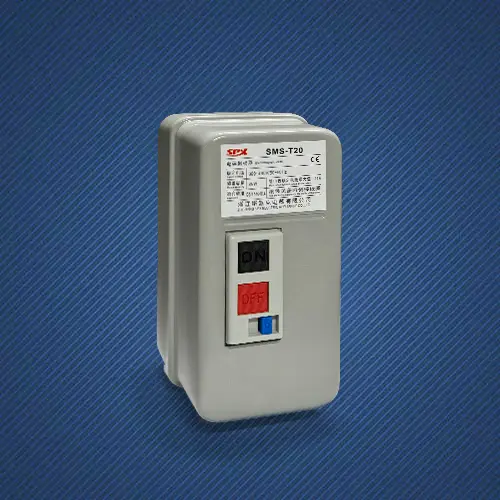

In the field of industrial automation and equipment drive, every start-up and operation of an electric motor is related to the stability of the entire system. The durable 10A Magnetic Motor Starter launched by SPX is a professional tool designed to protect small and medium power motors. It is not a simple stacking of components, but an intelligent unit that deeply integrates control and protection, aiming to provide users with a simple, safe, and maintenance free motor control core, making power drive worry free and more reliable.
The 10A Magnetic Motor Starter can control cooling tower fans, small circulating water pumps, and air valve drivers.
Motors that drive packaging lines, lightweight conveyors, and automatic sorting devices.
10A Magnetic Motor Starter serves as the main control switch for small air compressors, mixers, drilling machines, and cutting equipment.
10A Magnetic Motor Starter is used for motor control and protection of automatic door machines, garage ventilators, water treatment mixers, and other equipment.
Let professional starters guard every critical motor of yours. SPX looks forward to working with you to provide a safe and efficient power control core for your equipment. If you need more detailed technical information or customized selection support, please feel free to contact us at any time.
| Frame(A) | SMS-T10/12 | SMS-T20 | SMS-T21 | SMS-T25 | SMS-T35 | |||||
| KWIHP(AC-3)Reted power(AC-3)EC60947-4 | 220V | 2.2/3 | 4/5.5 | 4/5.5 | 5.5/7.5 | 7.5/10 | ||||
| 380V | 2.7/3.5 | 7.5/10 | 7.5/10 | 7.5/10 | 15/20 | |||||
| Reted current(AC-3)GB14048.4 | 220V | 11/13 | 20 | 20 | 26 | 35 | ||||
| 380V | 7/9 | 20 | 20 | 25 | 32 | |||||
| Reted heating current(A) | 20 | 32 | 50 | 60 | ||||||
| Reted insutaled voltage(V) | 660 | |||||||||
| Auxicary contactAC-15 | Contact | Standard | 1NO | 1NO+1NC | 2NO+2NC | |||||
| Reted current(A) | 220V | 1.6 | ||||||||
| 380V | 0.95 | |||||||||
| Electric rating | IP30 | |||||||||
| Machanical life | 1000 | 500 | ||||||||
| Outline and installation dimension |
|
|
||||||||
| Type | L | W | H1 | H2 | C1 | C2 | ||||
| S3-20/21 | 106 | 170 | 110 | 115 | 140 | 76.0 | ||||
| S3-25/35 | 136 | 225 | 110 | 130 | 165 | 95 | ||||
